Dual-color P4.75 LED Display The Ultimate Traffic Solution for Outdoor Toll Stationsw

Products Overview

Patron external display is a product developed by Glare LED for highway toll station application, which combines information
display, fee indication, voice broadcast, traffic tips and other comprehensive functions. It also has the characteristics of
energy conservation and environmental protection, high brightness, strong penetration ability, high protection level, and is a
recommended product in line with sustainable development.

Product Features

1,Using SMD process, long life, low light decay, low power consumption, good energy saving effects;
2, black mask design on the surface, higher contrast;
3, brightness>3500nits, strong penetration ability, display is clearly visible in foggy days and long distance;
4, IP65 protection grade, strong environmental resistance, can resist all kinds of harsh environments;
5, with voice broadcast, sound and light alarm functions;
6, column installation, backside maintenance;
7, support customized control protocol.

Product Parameter

Led Display parameters
led package	SMD1921,1R1G(Highlight led chip)
pixel pitch	4.75mm
external dimension	700mm×650mm×150mm
display size	608mm×304mm
structural material	cabinet and column are made of stainless steel or cold-rolled steel with plastic-sprayed surface
display mode	up and down, left and right scroll display, scroll speed adjustable, display immediately
Interface means	standard RS232 Or (RS485, TCP/IP) is optional
standard RS232 Or (RS485, TCP/IP) is optional
operating voltage	AC220V±18% 50Hz±10%
light intensity	≥4000cd/M2
Viewing Distance	≥4.75m
operating temperature	-20ºC~+50ºC
operating humidity	5%~95%
IP Grade	IP65
maximum power	180W
average power	55W
weight	≈30KG
Lane led lamp parameters
composition	high brightness red LED and high brightness green LED
lamp specification	φ5
rated voltage	DC12V
view angle	horizontal≥30°,vertical≥30
view distance	≥30m
Yellow flashing alarm parameters
alarm audio	2KHz--6KHz
alarm sound intensity	100-120dB(1 meter)

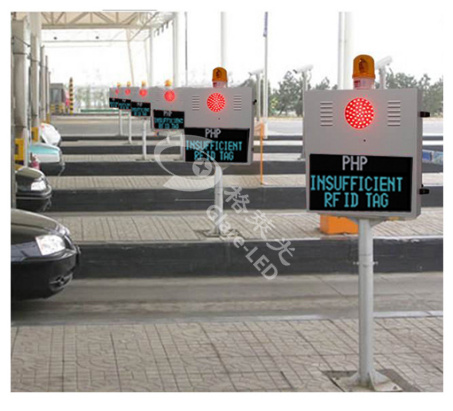

Project Case

Used mainly in highway expressway toll stations.

Company Profile

FAQ

Q: What do the gas price display come with? A: Pixel tube cluster signs the control card power supply are inside the cabinets no need control box anymore. Q: What is the warranty policy should the led price billboards arrive damaged? A: We are pleased to offer our convenient warranty policy. Q: How long do gas price signs last? A: Our signs can last an average of 6 years. Q: Can you provide finished product solution for exhibition or bid? A: Yes, we can, we have in this trade with 1oyear experience, and almost 3oR&D Dept. Q: Can you provide the digital board as the size of customing? A: Yes, of course, but our size already so much. If you want custom please contact LED Gas Signs Customers.
