Radar Warning Signs Road Warning LED Solar Radar Speed Sign Radar
Speed Limit Sign Led Display Portable Radar Speed Sign
Radar Warning Signs
Overview

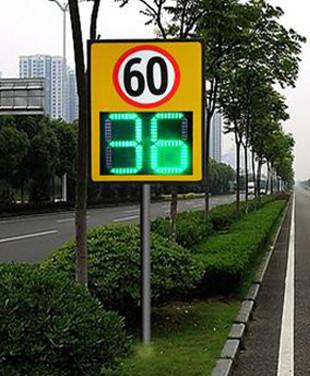

>> LED Radar Warning Signs made in 2 or 3 7 segment digit,
can set the limit speed number by remote controller. Inform the
driver limit speed: show green number in limit speed and show red
number out of limit speed.
>> When the vehicle drive into the radar detection area
(about 100m in the front of radar sign), the microwave radar will
automatically detect the speed of the vehicle and the speed will be
displayed in the sign to remind the driver to reduce driving speed,
which Effectively reduce the road traffic accidents caused by high
speed driving.
>> Speed feedback device has a significant eye-catching
induction driving function, can significantly reduce traffic
accidents, to achieve safety guidance.
Advantages

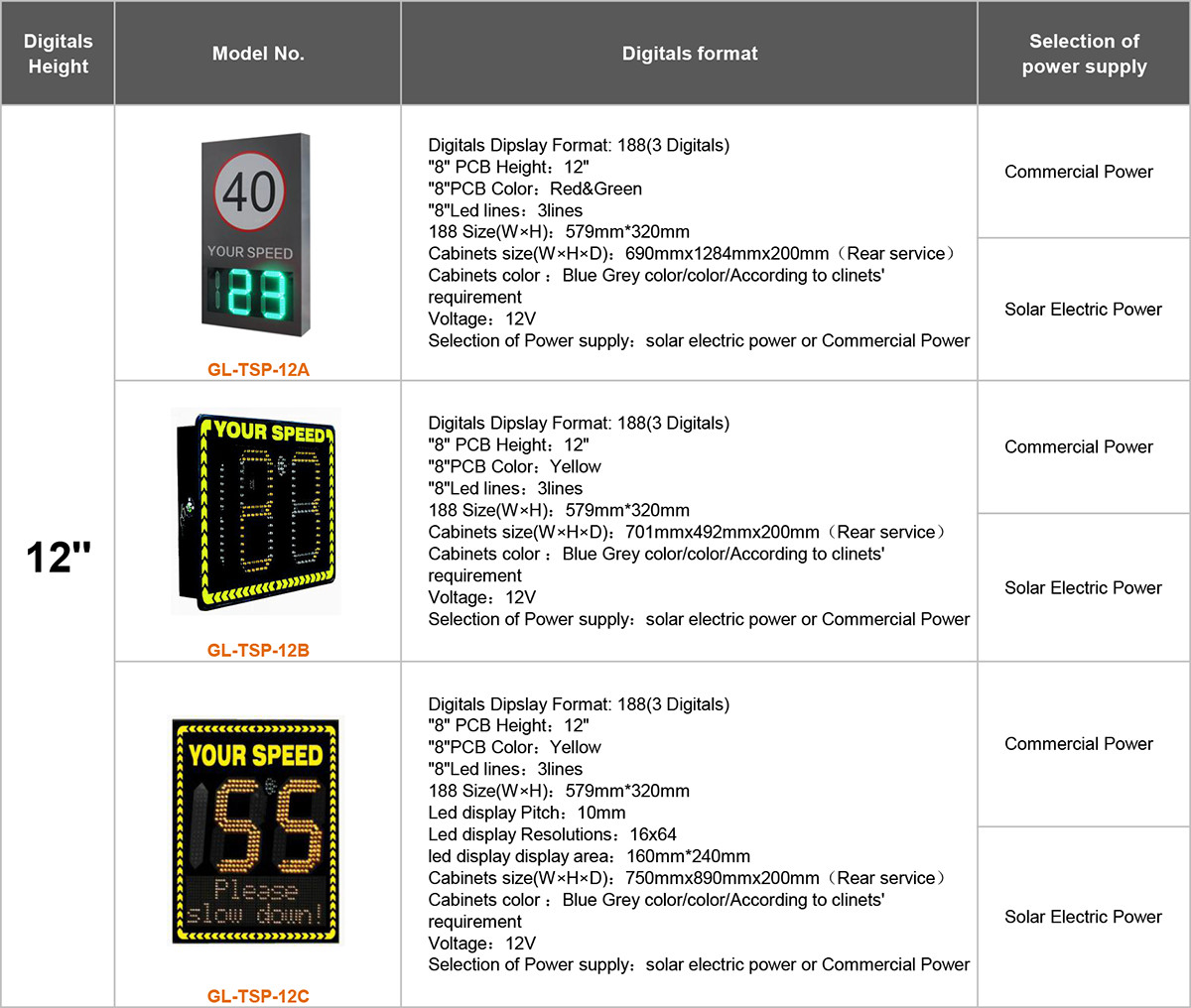

Parameter
Speed feedback device components
1. Speed limited sign (indicating the speed limit of the road
section)d
2. Such as "Please note your speed"and a dynamic LED (Conductor
light-emitting diode) display, the above data shows the vehicle's
speed
3. Microwave radar test the speed
4. Solar power with solar power supply system
Speed feedback device install instructions
1. Fix the solar panel on the frame, and then fixed on the speed
feedback instrument with screws and nuts. The white wires are used
to connect the solar panels and the batteries in the speed feedback
box, and the positive and negative electrodes are connected one by
one.
2. The speed feedback device fixed on the road left or right, or
just above the road , so that the direction of the radar port to
the car, the tilt angle of not more than 15 degrees, if it is fixed
above the road, the radar fixed position should be radar Cavity
oblique angle alignment to the car location. At the same time, the
higher the distance between the radar and the ground, the farther
away the radar work. Generally, The distance from the ground to
radar in 2-7 m is better.
3. Open the speed feedback device's back cover, connected The radar
data cable, control board connector one by one. Andl then adjust of
the radar position, so that it position the car.
4. When the speed feedback device over the top, fixed the speed
feedback with a screw to the column.
Application Sites
Schools, hospitals, three-dimensional parking lots, entertainment
venues, factory entrances and exits, mining areas, railway
transport areas, accident-pronel sites, construction sites,
temporary construction sections.
