p16 outdoor traffic variable message sign on highway gantry
PRODUCT OVERVIEW
GlareLED variable message signs and traffic guidance equipment
traffic information dissemination, which is based on LED lighting
device shows the effect of the basic traffic information display
unit of a display device with graphics and text. According to the
instruction information traffic, weather and dispatching
department, the operator can be released to the variable
information boards of various notices and information to
effectively induct traffic flow, improve transport capacity of the
road network, the safety of the driver driving fast provide
excellent service.
p16 outdoor traffic variable message sign on highway gantry
PRODUCT FEATURE
1.display module having the versatility and interchangeability can
be composed of different display colors and different sizes
according to needs.
2.double-box structure, the formation of internal natural
convection mode, so cabinets space temperature reaches equilibrium.
3. pixel module junction box and use the "O" ring, with good
moisture anti-leakage performance.
4. module package uses advanced soft silicone, the elastic, strong
anti-aging ability.
5.power supply, it is important IC device through the heat sink
cooling, not only solve the heat, but also to ensure the
performance is unstable due to mechanical failure when the cooling
fan caused.
6. use special wide temperature range of the device, ensure the
normal operation of the display at high or low temperatures.
7.The control system only with the IPC, and higher reliability.
8. use of sophisticated large-scale integrated chip high-speed
serial transmission network alternative to discrete parallel
transmission chip, reducing the complexity of the transmission
display, reducing the complexity of the control system to improve
the stability of the product.
9. using the network cable to transmit data to reduce the screen
body inside the transmission cable, greatly improve the stability
of the display.
10. using a common network data transmission technology, improve
gradation display variable message signs, information boards enable
a better display.
11. using a common network data transmission technology, in favor
of compatibility and product upgrading. Help to improve the
response speed of the system variable message signs.
Shenzhen Manufacturer Traffic road waterproof outdoor led display
board
Generally speaking, variable message sign is used to communicate in
realtime with motorists. variable message sign must address current
conditions on the roadway by being dynamic,
accurate, timely and understandable. When there are multiple
requests to post VMS messages simultaneously, messages will be
prioritized in the following order .glare-LEDs' traffic variable
message led display is widely used in highway, city road, highway
tunnel road, displaying the road situations info, Traffic command
department dispatches information, weather information and so on.
of importance:
1. Incident Management/Public Safety.
2. Congestion Management/Motorist Guidance.
3. Construction/Maintenance Activity.
4. Special Events.
5. Environmental.
6. Law Enforcement Message.
7. Public Service Campaign.
p16 portable outdoor traffic led display on highway gantry
Shenzhen factory road safety Traffic display sign
Features of Variable message signs:
Light source : High Power LEDs.
Housing: Aluminium profile, modular design principle in
seawater-proof aluminium AlMg3 or stainless steel (V4A, 1.4571)
Protection class :P1, P2, P3, drainage and ventilation holes IP54
Temperature classes: T1 (-15 - +60°C) / T2 (-25 - +55°C) / T3 (-40
- +40°C)
Humidity range: 20 – 95% rel. humidity
Controller•Embedded controller designed for industrial temperature
range : -40 to +85 °C •
Integrated fast access solid state data memory •
High speed picture interface using latest type of Dual port RAM and
FPGA technology •
Number of colours : mono, bicoloured, 3, 5, 256 colours •Max.
picture rate 20 frames/second
Interfaces •RS485/RS422 interfaces, interface for Profibus©,
Profinet, Canbus, Ethernet IP, WLAN and future interfaces •
TCP/IP connection via RJ45 •digital inputs •digital and analogue
sensors
Mounting options C-rails Pipe clamps Other constructions on request
Protocols FUTURITCOM 2 FUTURITCOM 2 via Profibus TLS 2002 / 2009
XDR/DAP NTCIP others on request
Optics The optical equipment fits tightly into the matrix. Contrast
ratio up to 25, even at low sun position
Pixel pitch : (freely programmable Variable message signs) 16 / 20
/ 25 / 31.25/33.33 mm
Product Description
p16 outdoor traffic variable message sign on highway gantry
parameter:
| Lamp beads | specific traffic LEDs |
| Pixel pitch | P16 |
| Display dimension | customize |
| Cabinet material | aluminum or cold rolled iron |
| Chip color | full color |
| Brightness | >12000cd/m2 |
| Brightness adjust | manual or auto adjust |
| Viewing distance | 16-300m |
| Control mode | asynchronous control |
| Communication port | RS232/RS485/RJ45/GPRS/3G etc |
| Refresh rate | >120hz |
| Certificate | CE/FCC/ROHS etc |
| Life span | 100,000 hours |
| Rate of dot out of control | <1/10000 |
| Insulation resistance | >100MΩ |
| High voltage resistance test | withstand 1500V / 50Hz AC voltage for 1 minute without breakdown |
| Impact resistance test | pass |
| Vibration resistance test | pass |
| Contact resistance | <0.1Ω |
| Protection class | IP65~68 |
| Operating Humidity | 5%-95% |
| Operating temperature | -40℃~+75℃ |
| Power supply | AC220V±18% / 50Hz±10% |
| AC380V±18% / 50Hz±10% |
| Name | Specification | Function |
| control system | main control system | communicate with the centerof the screen |
| drive traffic monitoring |
| Brightness adjust system | Brightness adjustment based on ambient |
| light traffic control system screen brightness |
| power system | power distributor | Centralized power system distribution box |
| power lightning protection devices | imported professional ightning protection |
| signal lightning protection devices | devices |
| Remote Switch electrical system | Remote Switch electrical system with remote |
| step-switch function |
| Communication module | RS-485 communication module | Industrial communication module |
| industrial grade communication module |
| RS-232 communication module |
| Ethernet communication module |
| LED variable message signs screen perform the following national
standards |
LED variable message screen | GB/T 23828-2009 | fully in accordance with international design, |
| production and testing |
| Traffic sign display | GB 5768.2 | traffic sign text, graphics meet the standards |
| Chinese character display | GB 2312 | digital display standard Chinese characters |
| Shell protection grade | GB 7000.1 | IP65 protection rating |
Communication interfaces and protocols | JT/T606.1 and JT/T606.3 | standard asynchronous |

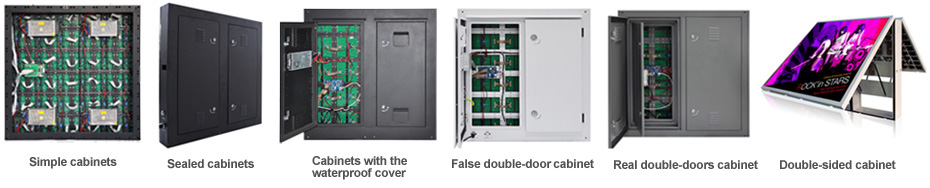

Variable message signs Cabinets Parameters
Waterproof Use cabinet design
Variable message signs LED Displays Aging Test

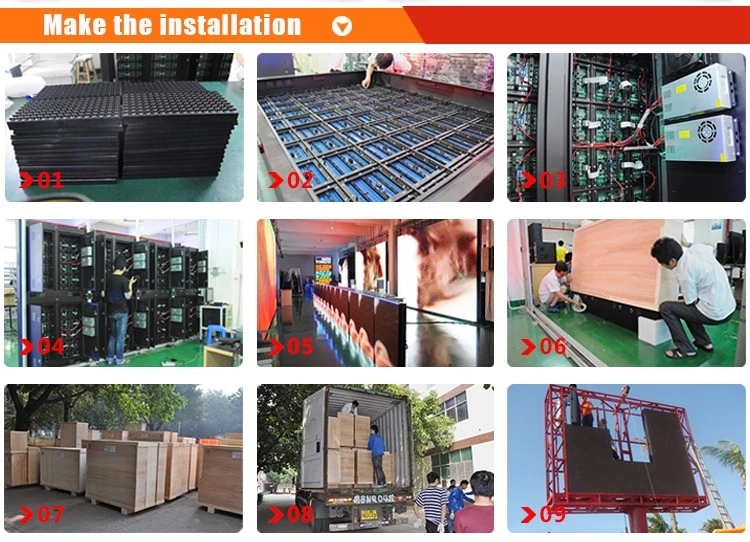

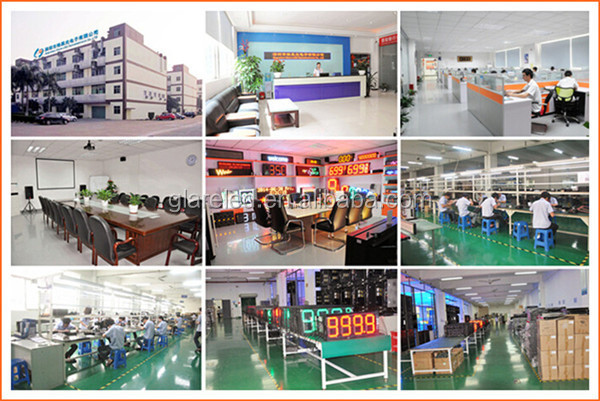

Variable message signs LED Display Manufacturing Proces
Variable message signs Project cases on High way

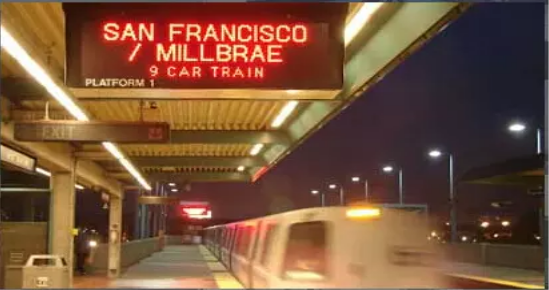

Variable message signs Project case in Metro Station

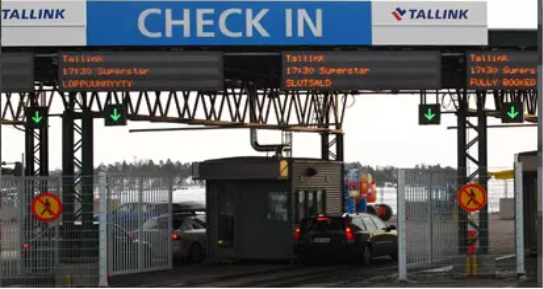

Variable message signs Project cases in Toll Station
Ship and Certificate
EN12966, CE, RoHS, FCC etc
FAQ
Q: What's the warranty of Variable message signs ?
A:We provide 1 year free warranty for any queality issue.
Q:What's the payment terms?
A:T/T or Western Union is OK. 30% as deposit,the balance 70% you
can pay us before shipping.
Q:What place and filed of this variable message sign is used
widely?
A: Variable message signs is widely used in high way, tunnel,city
street way,street,airport,ferry,metro station.
