12 inch or 13.4 inch Digit Height Led VMS Radar Speed Limit Signs with P10 Pixel Pitch

Factory Direct Solar Power Radar Speed Limit Sign for Traffic Safety

Product Introduction:

Specifications:

Model C	Size 1	Size 2
Cabinet Size:	W:750mm * H:890mm * D:200mm	W:802mm * H:960mm * D:200mm
the Specifications of the "188" (see as below):
Height of the digit "188"	12"	13.4"
Formats of the display digits	"188" (3 digits)
Displaying Speed Range	1 km/h - 199 km/h
Color of the digits "188"	yellow (standard) or Red/Green (custom)
"188" Power Consumption:	Max 15W ( Average <10W)
Brightness:	about 5000 cd/m²
Working Voltage:	DC 12V
Visual Distance:	150 meters

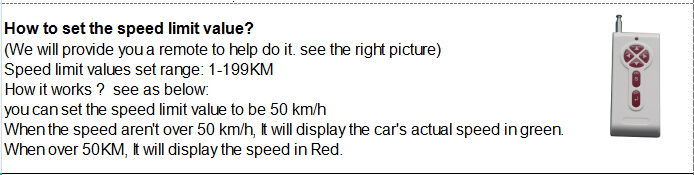

Communication:	RF remote
the Specificaitons of the matrix (see as below:) (Variable message sign, it is editable)
Led Lamp:	DIP P10, yellow, with viewing angle 70°
Brightness:	about 2000 cd/m²
input Voltage	5V
Communication:	TCP/IP or Serial port(RS232,RS254 etc.)
the specifications of the Cabinet (see as below:)
Cabinet Material:	Cold Rolled Steel Cabinet
Waterproof Level:	IP65 protected for outdoor use
Operating Temperature	minus 40℃ - 70℃
Maintenance	Back access Cabinet (standard) or Front Access (custom)
Lift time:	over 10 years

Application: along urban streets / Highway / near the school / Hospitial / Factory zone.

Model A and B can only display speeds. Model C can display both speed and variable massage.

All the three speed limit signs can be powered by DC 12V solar power or AC 220V from municipal power grid.

Maintenance can be back access or front access. it is negotiable and designed as per how and where the sign will be installed? if being fixed on a pole, you better choose front access, to help doing maintenance easily after installation. if you have some structure on a pole to hold the sign at four corners, back access is still a choice. we usually make back access cabinet without your special requirement.

Specifications:

Model A	Size 1	Size 2
Height of the digit "188"	12"	13.4"
Cabinet Size:	W:690mm *H:1284mm*D:200mm	W:810mm*H:1404mm*D:200mm
Formats of the display digits	"188" (3 digits)
Displaying Speed Range	1 km/h - 199 km/h
Color of the digits "188"	Red & Green ( display red if over speed)
Brightness:	about 5000 cd/m²
Working Voltage:	DC 12V (solar power) or AC 220V
Power Consumption:	Max 15W (Average <10W)
Visual Distance:	150 meters
Led Lamp:	DIP ∅5
Viewing Angle:	30 degree
Communication:	RF remote
Cabinet Material:	Cold Rolled Steel Cabinet
Waterproof Level:	IP65 protected for outdoor use
Operating Temperature	minus 40℃ - 70℃
Maintenance	back access
Lift time:	over 10 years

Specifications:

Model B	Size 1	Size 2
Height of the digit "188"	12"	13.4"
Cabinet Size:	W:701mm*H:492mm*D:200mm	W:830mm*H:530mm*D:200mm
Formats of the display digits	"188" (3 digits)
Displaying Speed Range	1 km/h - 199 km/h
Color of the digits "188"	Red & Green ( display red if over speed)
Brightness:	about 5000 cd/m²
Working Voltage:	DC 12V (solar power) or AC 220V
Power Consumption:	Max 15W (Average <10W)
Visual Distance:	150 meters
Led Lamp:	DIP ∅5
Viewing Angle:	30 degree
Communication:	RF remote
Cabinet Material:	Cold Rolled Steel Cabinet
Waterproof Level:	IP65 protected for outdoor use
Operating Temperature	minus 40℃ - 70℃
Maintenance	back access
Lift time:	over 10 years

Weight:25KG (including solar panel + rechargeable battery)

note: we can also provide only the speed limit sign(powered by DC 12V), if you can buy the solar panel and battery at your local.

Company Introduction:

RAQ:

1. Can we make any size of led display?
Please show us the size you want, according the led module sizes and cabinet sizes we have at present, we can provide you the displays extremely close to the size you asked. The best aspect ratio of LED display are W16:H9 or W4:H3

2,What if the displays is damaged during the shippment?
We are pleased to offer our convenient warranty policy.

3,How to install led display?
We will provide drawing of steel structure or hanging truss,then you can install led display very easy.

4,How to order LED display?
Please tell me where the displays should be placed? indoor or outdoor? the size you want and the application.

5,How to ship?
Usually shipped by air or by sea.

6,How to payment?
You can transfer payment by TT, West union or L/C

7. Can you provide the finished solutions for exhibitions or do custom projects?

Yes, we has 10 years experiences in Led displays area and can do custom design as you ask.

    Shenzhen Glare-LED Optoelectronics Co., Ltd, founded in 2006,which is a High-tech enterprise specializing in R&D,Design,Production,Maketing and Engineering of outdoor LED display ,outdoor traffic Led display and related LED products. Glare-LED has more than 30 people of experienced R&D engineering ,together with 150 employees.Glare-LED relies on the Advantages of senior talents and technical elite,focus on the product quality and commited to become the global market leader in the field of LED applicantions!

    At present, our company owned series are: Outdoor LED display , Outdoor Traffic led display , LED gas station .Glare-LED attaches great importance to product quality management, and have been awarded the ISO9001 Intenational Quality Management System certification, together with CCC,EC, FCC,ROHS certification and all kinds of product Patents, Glare-LED VMS series products have passed the EN12966 International certification and the inspection by the Quality Inspection Center of the Ministry of Communications of China and other relevant organizations and related quality control test.

    With its advanced quality management system, perfect marketing service network and rapid after-sales service system, Glare-LED has won widespread recognition and praise from many markets and customers. Its products and cases are spread over 400 cities at home and abroad.We have thousands of customers, and establish good relations of cooperation with the United States, Germany, South Korea, the United Kingdom, Spain, Russia, Italy and other more than 90 countries ,so become an international LED application products "China create" and "made in China" one of the representatives!

    Glare-LED is willing to work with you hand in hand---to add a beauty to the world!
